MAIN SPECIFICATIONS
| Model | P-Series | |
|---|---|---|
| Driving system | 4 x 2 | |
| Driving position | Left-hand drive/Right-hand drive | |
| Maximum gross vehicle mass [kg] | 2,950 | |
| Body type | Flat bed (steel) | Cab & chassis |
| Vehicle mass [kg]* | 1,475 | 1,290 |
| Maximum payload [kg] | 1,475 | - |
| Minimum turning radius [m] | 4.5 | |

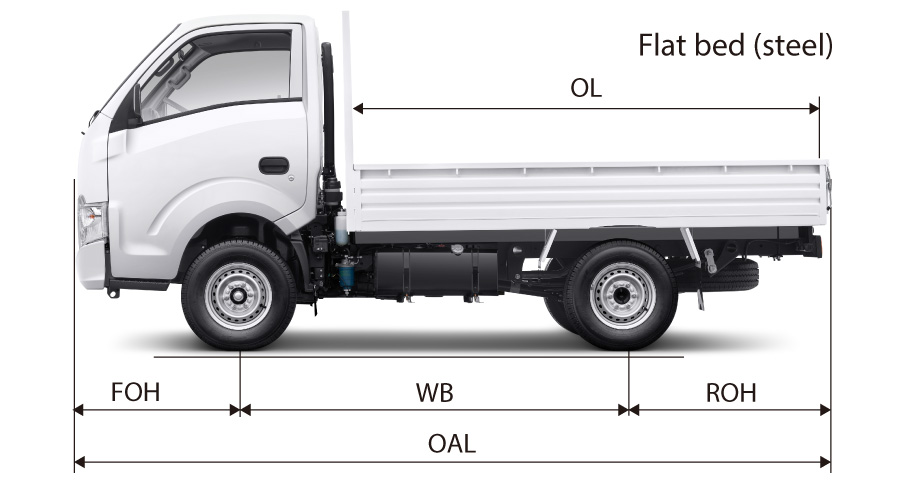

| Overall length (OAL) | 4,520 | 4,460 |

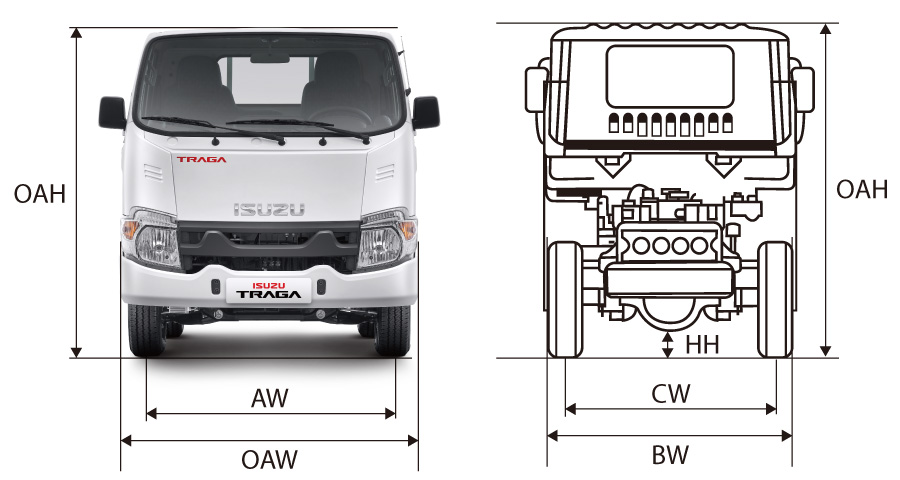

| Overall width (OAW) | 1,695 | |
| Overall height (OAH) | 1,955 | |
| Wheel base (WB) | 2,250 | |
| Front tread (AW) | 1,460 | |
| Rear tread (CW) | 1,460 | |
| Outside of rear tire (BW) | 1,660 | |
| Front overhang (FOH) | 1,005 | |
| Rear overhang (ROH) | 1,265 | 1,200 |

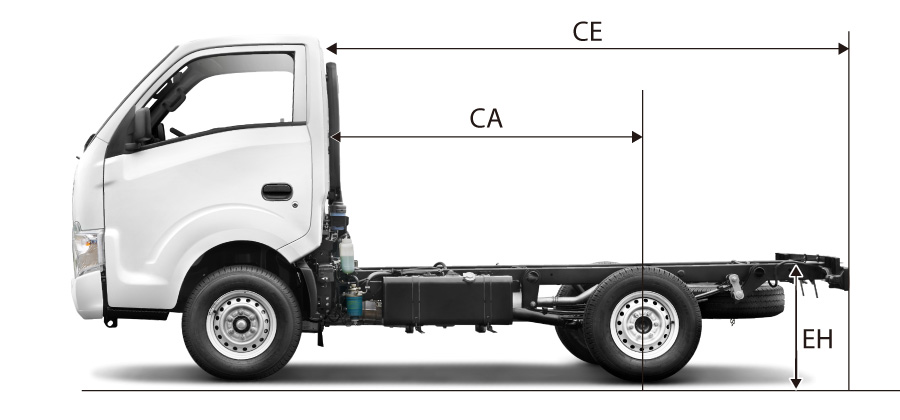

| Cab to rear tire center (CA) | – | 1,755 |
| ab to chassis end (CE) | – | 2,955 |
| Chassis rear end height (EH) | – | 670 |
| Ground clearance (HH) | 200 | 215 |

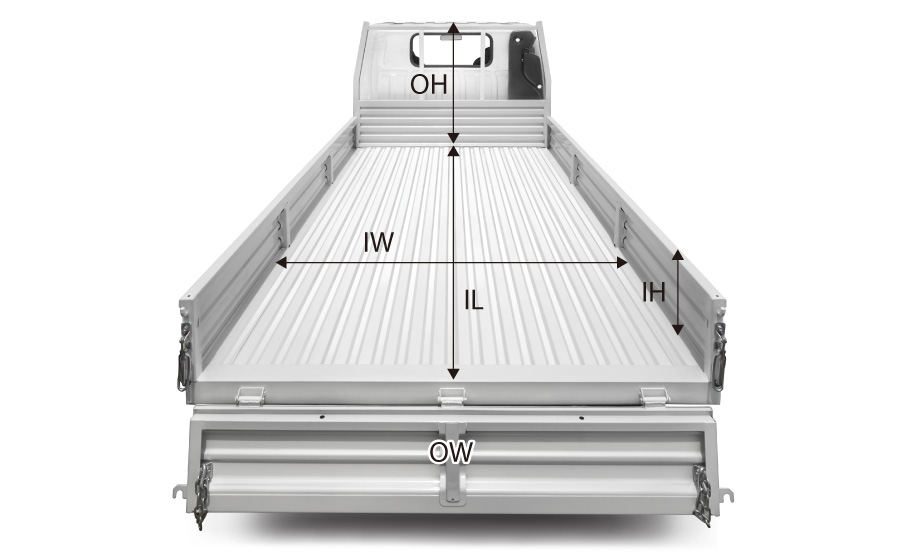

| Cargo inside length (IL) | 2,810 | – |
| Cargo inside width (IW) | 1,620 | – |
| Outside height/Inside height (OH/IH) | 1,380/300 | – |
| Outside length (OL) | 2,900 | – |
| Outside width (OW) | 1,705 | – |
*Vehicle mass includes specified amount of fluid (fuel, coolant, oil), spare tire and required tool.
| Chassis | |||
|---|---|---|---|
| Clutch | Type | Dry single plate, hydraulic control | |
| Diameter [inch (mm)] | 8.9 (225) | ||
| Transmission | Model | MUA5S | |
| Type | Manual 5-speed overdrive | ||
| Gear ratio | 1st | 4.357 | |
| 2nd | 2.502 | ||
| 3rd | 1.501 | ||
| 4th | 1.000 | ||
| 5th | 0.809 | ||
| Reverse | 3.970 | ||
| Final gear | Diameter [inch (mm)] | 7.6 (194) | |
| Ratio | 4.777 | ||
| Brake | Service | Hydraulic vacuum assisted dual circuit | |
| Front | Ventilated disc | ||
| Rear | Leading and trailing shoe drum | ||
| Parking | Center brake (propeller shaft lock type) | ||
| Wheel lock control | DSPV (Deceleration Sensing Proportioning Valve) | ||
| Steering | Type | Rack and pinion type with power assist system | |
| Front axle | Type | Independent | |
| Capacity [kg] | 1,250 | ||
| Rear axle | Type | Single banjo, semi floating | |
| Capacity [kg] | 1,870 | ||
| Suspension | Front | Double wishbone with coil spring | |
| Rear | Semi–elliptical alloy steel leaf spring | ||
| Frame | Type | Ladder type box section | |
| Rear width [mm] | 860 | ||
| Side rail H x W x T [mm] | 100 x 50 x 3.2 | ||
| Tire size | Front and rear | 195R14C–106/104 | |
| Disc wheel | Front and rear | 14 x 5.5J–41 (6 studs) | |
| Fuel tank | Capacity [L] | 50 | |
| Engine | |
|---|---|
| Model | 4JA1–L |
| Emission standard | Euro 2 |
| Type | Direct injection, OHV diesel engine |
| No. of cylinders | 4 |
| Air intake system | Turbocharged |
| Displacement [cc] | 2,499 |
| Maximum output [kW (PS)/rpm] | 58 (78)/3,800 |
| Maximum torque [N∙m (kg∙m)/rpm] | 176 (18)/1,800 |
| Generator | 12V-70A/12V-90A* |
| Starter | 12V 2.0kW |
| Battery | 65D26R x 1 |
*Settings vary depending on the vehicle model.
| Function | |||
|---|---|---|---|
| Battery | 65D26R | 12V-52Ah x 1 | ● |
| Towing hook | Front | ● | |
| Rear | ● | ||
| Fuel tank | Fuel tank cap with key | ● | |
| Spare tire | Tire and disc wheel | ● | |
| Cab interior | |||
|---|---|---|---|
| Seat | Driver seat | 3-point support seatbelt with ELR | ● |
| Assist seat | 3-point support seatbelt with ELR | ● | |
| Center seat | 2-point support seatbelt | ● | |
| Seat material | Left-hand drive: cloth | ● | |
| Right-hand drive: vinyl | ● | ||
| Storage | Glove box | With lid | ● |
| Ash tray | Center | ● | |
| Cup holder | Driver and assist side | ● | |
| Electrical equipment | Cigar socket | ● | |
| Without cigar socket (= electric outlet)*1 | ● | ||
| Heating Ventilation and Air Conditioning (HVAC) | Ram-air ventilation with blower | ● | |
| Air conditioner (without heater)*2 | ● | ||
| Audio | Front two speakers | ● | |
| AM/FM radio without CD player*3 | ● | ||
*1 Laos market only. *2 Laos and C. American market. *3 Equipment status varies by market.
| Visibility and safety | |||
|---|---|---|---|
| Rear window | ● | ||
| Sun visor | Driver side | ● | |
| Horn | Single tone | ● | |
| Headlight | Halogen type | ● | |
| Leveling (manual-screw adjust type) | ● | ||
| Outside buzzer | Reverse warning | ● | |
●Standard
• Specifications and equipment in this catalog are subject to change without notice.
• Dimensions and mass may vary based on the mounting of an option.
• When selecting optional equipment, consult your ISUZU dealer as some optional items are not applicable to all models.
• Exterior and interior colors in the photos may differ from the actual colors due to photographic conditions and ink used in printing.
• Special edition models specific to this catalog are used for all photos, and the photos of those models being driven are all composite images.
Details of specifications and equipment are also subject to change to meet local conditions and government requirements.
Please inquire at your ISUZU dealer for more complete details of any such changes that may be required.
