General PowerStage Ⅴ
4LE2X
*Image shown may not reflect actual engine configuration.
*Performance curves shown are representative.
- Engine Model
- 4LE2X
- Rated Output
- 46 kW /2400 min-1
- Dry Weight
- 234kg
- Displacement
- 2.179L
- Overall Dimensions
- Engine Type
- Vertical In-Line, 4-Cylinder, OHC
- Type of Aspiration
- Turbocharged and Charge Air Cooled
- Type of Injection
- Direct
- Emission Regulation
- StageⅤ
4JJ1X
*Image shown may not reflect actual engine configuration.
*Performance curves shown are representative.
- Engine Model
- 4JJ1X
- Rated Output
- 86 kW / 2200 min-1
- Dry Weight
- 320 kg
- Displacement
- 2.999L
- Overall Dimensions
- Engine Type
- Vertical In-Line, 4-Cylinder, OHC
- Type of Aspiration
- Turbocharged and Charge Air Cooled
- Type of Injection
- Direct
- Emission Regulation
- StageⅤ
4HK1X
*Image shown may not reflect actual engine configuration.
*Performance curves shown are representative.
- Engine Model
- 4HK1X
- Rated Output
- 140 kW / 2000 min-1
- Dry Weight
- 510 kg
- Displacement
- 5.193L
- Overall Dimensions
- Engine Type
- Vertical In-Line, 4-Cylinder, OHC
- Type of Aspiration
- Turbocharged and Charge Air Cooled
- Type of Injection
- Direct
- Emission Regulation
- StageⅤ
6HK1X
*Image shown may not reflect actual engine configuration.
*Performance curves shown are representative.
- Engine Model
- 6HK1X
- Rated Output
- 210 kW / 1900 min-1
- Dry Weight
- 710 kg
- Displacement
- 7.790L
- Overall Dimensions
- Engine Type
- Vertical In-Line, 6-Cylinder, OHC
- Type of Aspiration
- Turbocharged and Charge Air Cooled
- Type of Injection
- Direct
- Emission Regulation
- StageⅤ
6UZ1X
*Image shown may not reflect actual engine configuration.
*Performance curves shown are representative.
- Engine Model
- 6UZ1X
- Rated Output
- 270 kW / 2000 min-1
- Dry Weight
- 960 kg
- Displacement
- 9.839L
- Overall Dimensions
- Engine Type
- Vertical In-Line, 6-Cylinder, OHC
- Type of Aspiration
- Turbocharged and Charge Air Cooled
- Type of Injection
- Direct
- Emission Regulation
- StageⅤ

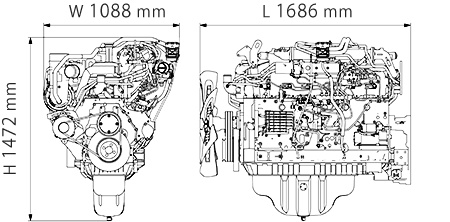

6WG1X
*Image shown may not reflect actual engine configuration.
*Performance curves shown are representative.
- Engine Model
- 6WG1X
- Rated Output
- 382 kW / 2000 min-1
- Dry Weight
- 1150 kg
- Displacement
- 15.681L
- Overall Dimensions
- Engine Type
- Vertical In-Line, 6-Cylinder, OHC
- Type of Aspiration
- Turbocharged and Charge Air Cooled
- Type of Injection
- Direct
- Emission Regulation
- StageⅤ
